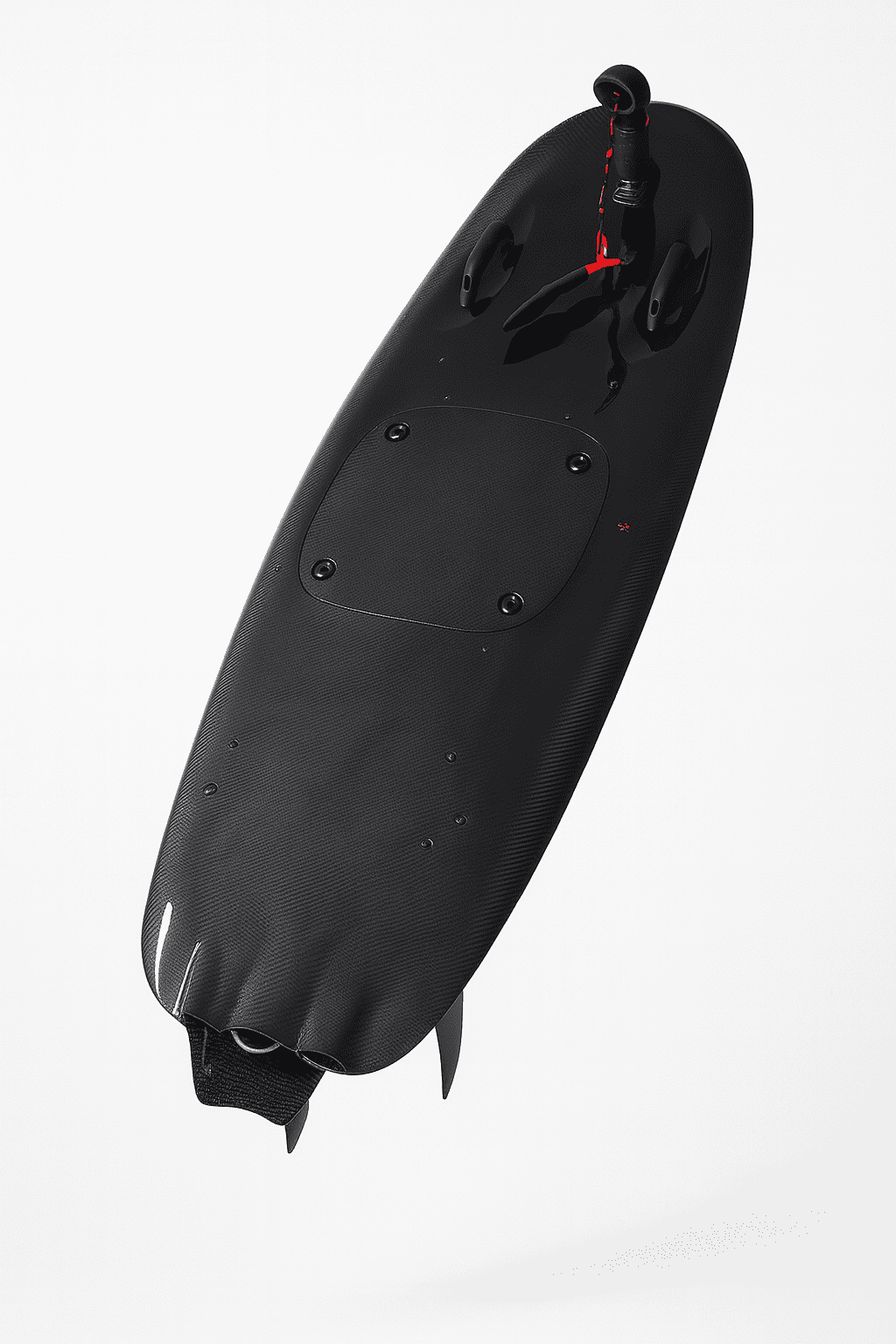

Carbon Fiber Electric Surfboard – High-Speed Stand-Up Jet Board for Watersports

Carbon Fiber Electric Surfboard – High-Speed Stand-Up Jet Board for Watersports

Experience pure speed and precision on water with our Carbon Fiber Electric Surfboard.
Built for riders who crave both performance and durability, this high-speed jet board merges aerospace-grade carbon fiber construction with intelligent hydrodynamic design. Whether you’re racing across open waters or gliding along the shore, it delivers powerful acceleration, exceptional stability, and effortless control — redefining modern electric surfboarding.

Key Features

• Aerospace-Grade Carbon Fiber Construction – Ultra-lightweight and high-strength structure with superior rigidity and corrosion resistance.
• High-Speed Electric Jet Drive – Integrated electric propulsion unit delivers rapid acceleration and smooth, controlled thrust up to 55 km/h.
• CFD-Optimized Hull Geometry – Advanced V-shaped or dual-concave hull improves balance, stability, and cornering precision at high speed.
• Smart Lithium Power System – IP68-rated battery pack with advanced BMS monitoring for safety, endurance, and easy replacement.
• Seamless One-Piece Molding – No visible seam lines; improved hydrodynamics, strength, and waterproof integrity.
• Customizable Finish Options – Choose between gloss, matte, forged, or colored carbon finishes with optional logo integration.

Customer Problems We Solve

• Low Performance & Drag – Traditional surfboards struggle with drag and limited thrust. Our fix: precision CFD hull design and carbon monocoque structure for optimal efficiency.
• Short Battery Life – Inferior systems drain quickly. Our fix: high-density lithium modules extend ride time up to 80 minutes per charge.
• Weak Joints & Water Leakage – Hand-layup boards are prone to cracks. Our fix: seamless compression molding for 100% waterproof performance.
• Unstable Control at High Speed – Poor weight distribution leads to wobbling. Our fix: low center-of-gravity hull and reinforced stance zones enhance rider balance.
• Corrosion & Wear – Marine exposure causes rust and fatigue. Our fix: 316L marine-grade inserts, UV-protected coatings, and salt-resistant finishes.

Why Choose Carbon Fiber?

• Superior Strength-to-Weight Ratio – Delivers maximum power with minimal mass for responsive handling.
• Precision Engineering – CNC-machined molds and vacuum-assisted molding ensure ±0.1 mm tolerance consistency.
• Performance Stability – Carbon stiffness maintains control and feedback even at top speeds.
• Luxury Aesthetics – Exposed carbon weave finish emphasizes craftsmanship and brand prestige.
• Longevity & Reliability – Resistant to impact, UV, and saltwater degradation for years of heavy use.

Applications

• Professional and recreational riders seeking a high-speed electric surfboard.
• Water sports resorts and rental operators offering premium experiences.
• OEM/ODM partners building branded electric jet surfboard lines.
• Performance training centers requiring stable, durable electric surfboards.

Frequently Asked Questions (FAQ)

Q1: What is the maximum speed and runtime?
A1: Top speed reaches 55 km/h with a runtime of 60–80 minutes depending on rider weight and mode.

Q2: How is the surfboard powered?
A2: A high-performance electric jet propulsion system powered by a rechargeable lithium battery pack with smart management control.

Q3: Can it be used in saltwater?
A3: Yes. All structural and electronic components are marine-rated for saltwater durability and corrosion resistance.

Q4: Can I customize the design for my brand?
A4: Yes. We offer full OEM/ODM services including custom finishes, colors, and logo placement for brand exclusivity.

Q5: What safety measures are included?
A5: The system integrates waterproof electronics, anti-overheat protection, and intelligent power cut-off for safe operation.

Ride the future of speed and control — powered by JCSPORTLINE, where professionals turn ideas into carbon reality.

Design Phase: From Hydrodynamics to Structural Optimization

• SolidWorks / CATIA with CFD hydrodynamic simulation for complete structural design.
• Optimized waterline, tail rocker, and channel layout for lower drag and higher agility.
• V-shape or dual-concave bottom with leading-edge radius control for stability in choppy water.
• Integrated inserts & routing during design to minimize post-processing risk and leakage points.
• AI-based load & CG simulation ensures stability at speed across multiple sea conditions.

Lightweight Structure: Achieving the 8 KG Balance

• Sandwich Construction: “Carbon Fiber + Core” for strength-to-weight efficiency.
• Carbon Layers: 2×2 twill outer (impact) + unidirectional inner (longitudinal) with ±45° lay-up for torsional rigidity.
• Core Material: PU or PMI foam (60–120 kg/m³); PU offers PMI-like mechanics at lower cost.
• Localized Reinforcement: Tail, stance zone, and fin base per use case (racing/rental/recreation).

Weight Performance: Mainstream target ≈ 8 kg, tuned per strength standard while maintaining buoyancy and stability.

Mold Manufacturing: Precision from Surface to Structure

• P20 mold steel with Ra ≤ 0.8 μm mirror finish.
• 5-axis CNC machining for ±0.1 mm tolerance.
• Split mold + precision locating pins for exact alignment.
• Teflon release layer prevents fiber print-through and surface damage during demolding.
• One-piece compression molding eliminates visible seams; continuous carbon weave increases strength by ~35%.

Prototyping and Performance Validation

• Thermal Curing: 120 °C autoclave for 4h or 150 °C press-molding for 1.5h.
• Mechanical Testing: Flexural ≥300 MPa; Tensile ≥80 MPa; Core shear ≥15 MPa.
• Dynamic Testing: Water-tank tuning places the CG at ~1/3 board length for optimal control.
• 3D Scan Verification: CAD vs. prototype deviation ≤0.5 mm for repeatable precision.

Appearance and Coating

• Seamless one-piece surface with continuous carbon weave.
• Finishes: Gloss / Matte / Semi-transparent Carbon / Custom Logo.
• Large water-decal capability (>1 m) for branding.
• All finishes pass thermal cycling and salt-spray tests—no peeling, blistering, or warping.

Waterproofing and Anti-Corrosion Design

• Marine-grade stainless steel 316L inserts and hardware.
• 24-hour salt-spray pre-treatment; service life ≥ 3 years in marine conditions.
• Glass-fiber wrap + ABS reinforcement around insert zones to resist fatigue.

Mass Production and Quality Control

• Automated prepreg cutting, accuracy ±0.2 mm.
• PU core one-shot molding for uniform density.
• 150 °C / 90 min compression molding with closed-loop temperature monitoring.
• Ultrasonic (UT) + industrial CT; internal defect rate ≤0.5%.
• Modular assembly design; efficiency +60%.
• Custom PE film + foam crate; transport vibration ≤2g.

Environmental and Sustainable Manufacturing

• ≥90% carbon fiber recycling via fiber carbonization.
• Solar-powered curing reduces unit energy by ~30%.
• Low-VOC resin systems to minimize emissions.

Key Technical Challenges and Solutions

Final Performance Summary

• Weight: 8–15 kg, tunable via lay-up per strength target (mainstream target ≈ 8 kg).
• Dynamic Load Capacity: ≥ 500 kg.
• Surface Texture: Seamless carbon weave, natural flow without seam lines.
• Waterproof Durability: ≥ 3 years in marine conditions.
• Finish Quality: Mirror-like gloss or matte; no color deviation or bubbles.

Our Carbon Fiber Electric Surfboard achieves an optimal balance of innovation, performance, and durability.
With aerospace-grade materials, one-piece compression molding, and CFD-guided design, it delivers a precise, stable, and premium riding platform—
whether you are chasing performance or curating a dependable fleet for rental operations. Propulsion system is not included.
