Weave direction
Mark the preferred direction on the sample where two pieces meet.

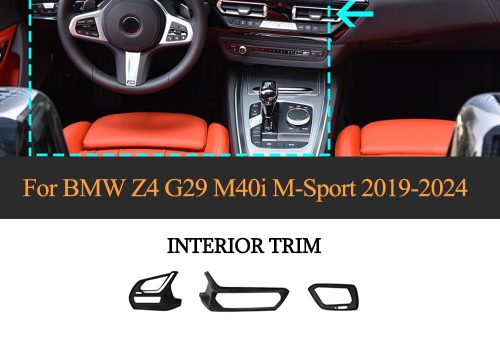

For selected 2019–2024 G29 M40i and M Sport interiors with matching vents and center-console controls.

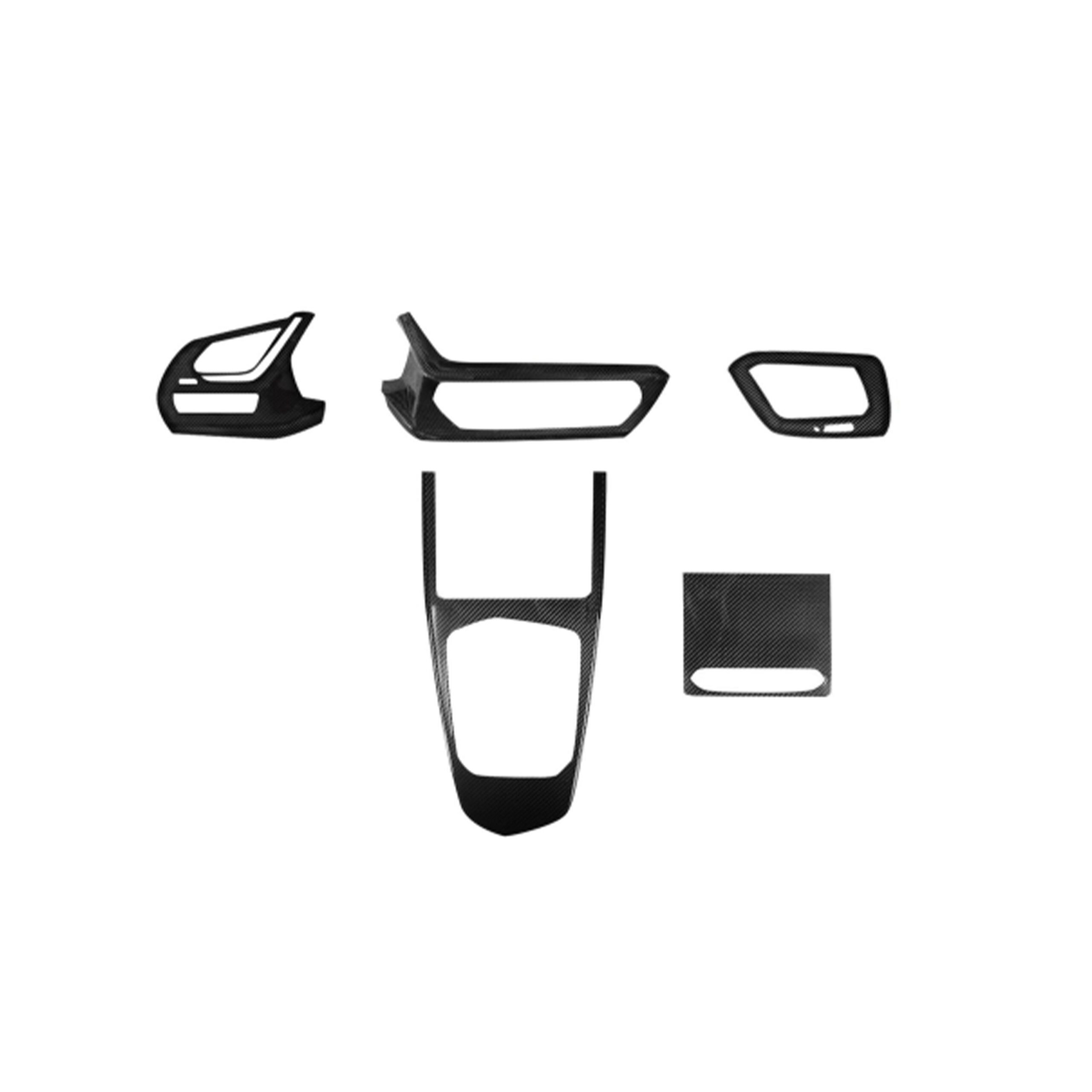

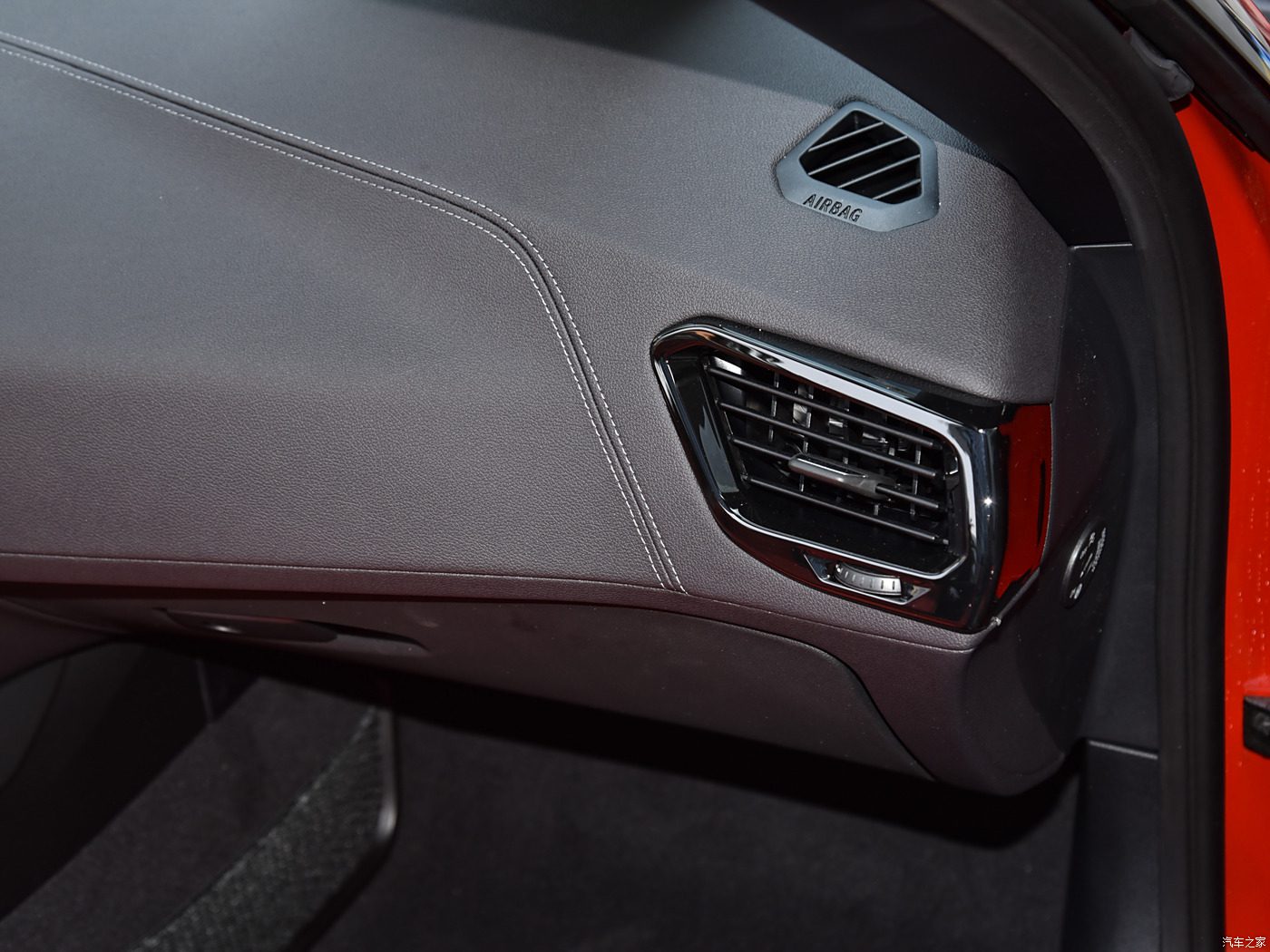

This BMW Z4 G29 dry carbon interior trim follows the dashboard vents and center-console surround. The original vent assemblies and controls stay in place under the fitted surrounds. The photos show the vent edges as they appear from the driver’s seat and beside the passenger door.
Choose the console pieces against the car’s actual selector and iDrive controls. For an order covering more than one interior version, group the cockpit photos by layout so each group can be matched to its own set of openings.
Carry the carbon finish from the dashboard into the center console.
Retain the original vent modules and adjusters.
Separate the cars by shifter and controller layout.
Mark the fitting positions on photos of the original interior. We can use the same marked views to identify the pieces on your quotation.
Use the original interior or an approved sample as the reference for the visible face.

Mark the preferred direction on the sample where two pieces meet.

Compare the sample beside the surrounding trim in the cabin before approving the finish.
Show the screen surround, selector and switch openings. Include the steering side when the panel follows the dash or console layout.
Identify the seat type and mark the seat back, headrest opening or side switch panel you want to trim.
Mark each opening or door on an overview photo, then add a close-up of its outline.
List the pieces by fitting position. For handed parts, specify the left and right pieces and the number of each.
Identify which visible surfaces need to match. For a repeat order, use the same panel reference and finish sample.
Use one fitting reference and one numbered list of pieces throughout the order.
Record the chassis, model year and the original panel or seat version.
Mark each required piece and its orientation on cabin photos.
Agree which pieces cover an existing panel and which, if applicable, replace one. Specify the visible material.
Compare outlines, openings and visible edges with the original panel and approve the finish.
Produce to the agreed sample and keep different panel layouts under separate order references.
Check handed pieces and opening positions, then count the packed parts against the order list.
Certified production quality system
Certified quality management
Self-owned manufacturing base
Parts or sets, combined capacity

We check the visible weave and finish, compare openings and edges with the approved sample, and verify each packing position against the parts list.
Quality controlCompare the selector and iDrive controls with the console cutouts, and include a photo showing both. A change in either outline can affect which pieces fit.

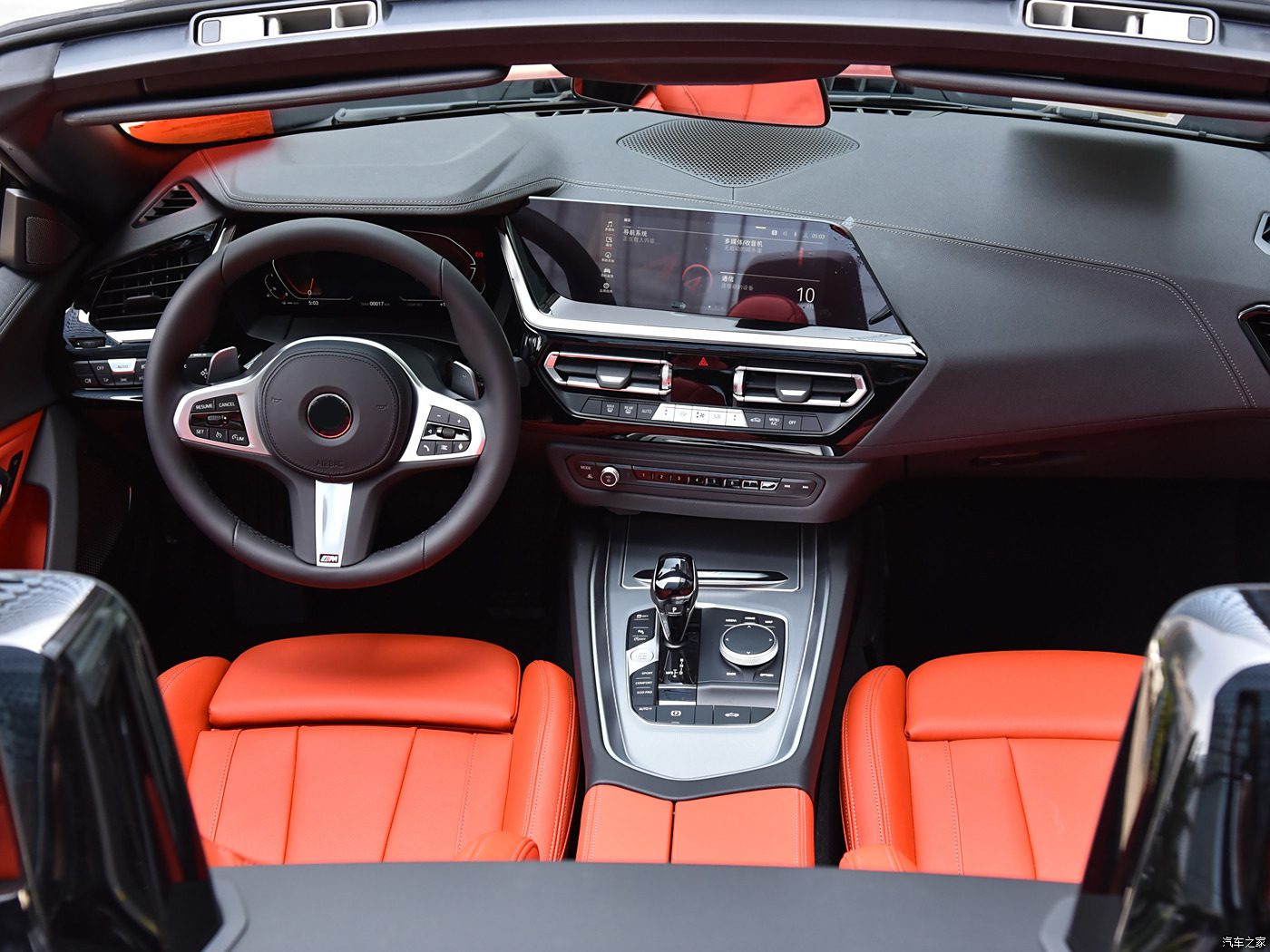

The installed example shows a left-hand-drive dashboard. Show both outer vents and the console on the right-hand-drive car so we can check the corresponding surrounds.
The minimum for an existing design is 10 pieces. For a new design, we agree the minimum quantity for the project. The quotation identifies the pieces supplied with each kit.
Send the SKU, chassis code, model year and photos of the original fitting area. For dashboard and console parts, show the steering side and the screen and switch layout.
As a guide, projects that require design approval may take around 58 days from approval to delivery. Lead times may be shorter for existing products or when suitable tooling is available. We confirm the schedule in your quote.
Ask for an itemized packing list with each piece identified by its fitting position. If the parts are handed, the list should show the left and right quantities separately.
Include the model year and a clear view of the selector and vent outlines.
Our engineers will review your concept and provide materials, structure, and feasibility suggestions.
